Technical specification

Measuring Tools Specifications



Machine

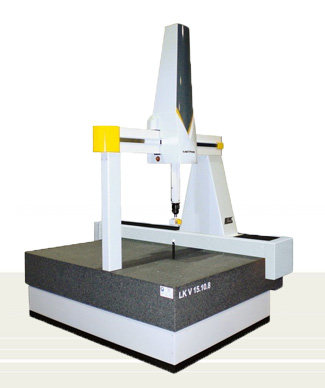

COORDINATE MEASUREMENT MACHINE

Brand (Model) : LKV 302015

Description
Useful for coordinate accurancy measurement.

Specifications
X - 3048mm, Y - 2030mm, Z - 1524mm
Renishaw PH10MQ and TP200

Tolerance : 3.00 + L/400



Tool

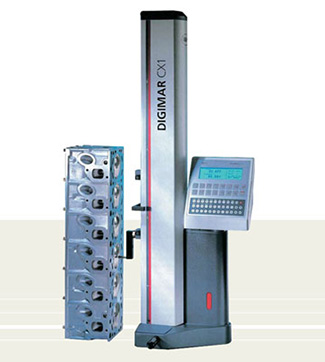

SEMI-AUTO HEIGHT GAUGE - MAHR DIGIMAR CX 1

Specifications
Measurement height up to 600mm

Tolerance : +/- 0.005mm



Tool

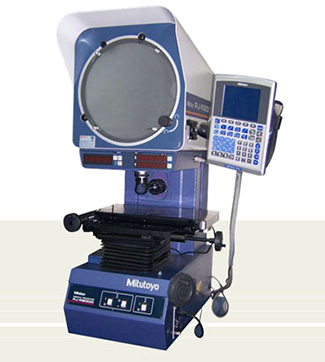

PROFILE PROJECTOR WITH MULTIFUNCTIONAL DATA PROCESSING DIGITAL READOUT UNIT – MITUTOYO

Description
Useful for accurate measurement on product dimension, profile and angle.

Specifications
Resolution: 0.001mm
Accuracy: +/- (4 + L/25) μm
Repeatability: 3μm

Tolerance : +/- 0.001mm





Tool

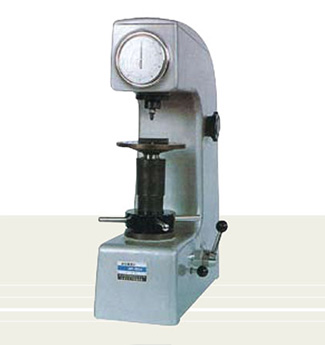

HARDNESS TESTER

Description
Measuring range: 20-88HRA,
20-100HRB , 20-70HRC
Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)
Max. height of test piece: 170mm
Depth of throat: 135mm

Tolerance : 0.1HR

Tool

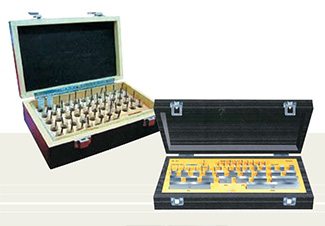

PIN GAUGES - MITUTOYO

Tolerance : +/- 0.002mm

Tool
BLOCK GAUGES - MITUTOYO

Tolerance : +/- 0.002mm




Tool

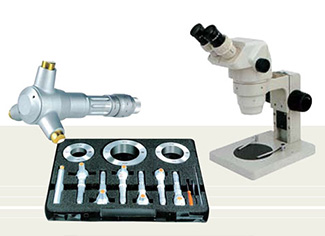

INTERNAL MICROMETER

Tool
MICROSCOPE

Tool

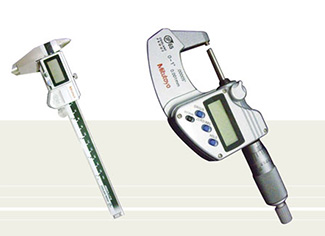

DIGITAL CALIPER - MITUTOYO

Tool
DIGITAL MICROMETER - MITUTOYO
