Machine Specification
Machine

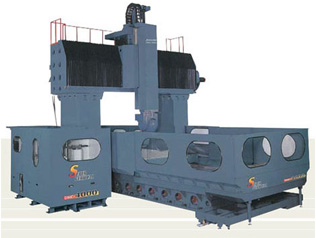

5-FACE DOUBLE COLUMN MACHINING CENTRE
Brand (Model) : Johnford (DMC 4100)
Description
Heavy duty milling machine for a wide range of product including machine structure, automobile stamping mould, oil and gas machine sparepart and etc.
- X,Y,Z travel: - X - 4100mm, Y - 2800mm, Z - 1025mm
- ATC capability with No. of tools = 60
- 1 feet rotary table
- Horizontal head rotary index = 5°
- Table load capacity = 10000kgs
Tolerance : +/- 0.01mm
Machine

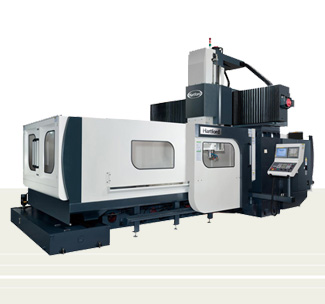

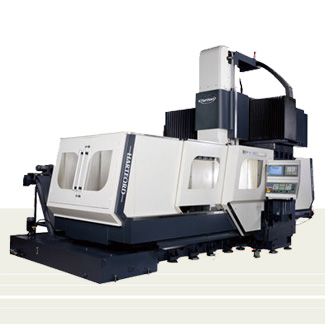

DOUBLE COLUMN MACHINE CENTRE
Brand (Model) : Harford (HEP-3150)
Description
Heavy duty milling machine for a wide range of product including machine structure, automobile stamping mould, oil and gas machine sparepart and etc.
- X - 3250mm, Y - 1500mm, Z - 780mm
- ATC capability with No. of tools = 20
- 1 feet rotary table
- Table load capacity = 7000kgs
Tolerance : +/- 0.004/300mm
Machine
DOUBLE COLUMN MACHINE CENTRE
Brand (Model) : Harford (HSA-2215)
Description
Heavy duty milling machine for a wide range of product including machine structure, automobile stamping mould, oil and gas machine sparepart and etc.
- X - 2200mm, Y - 1500mm, Z - 780mm
- ATC capability with No. of tools = 20
- 1 feet rotary table
- Table load capacity = 6000kgs
Tolerance : +/- 0.004/300mm
Machine

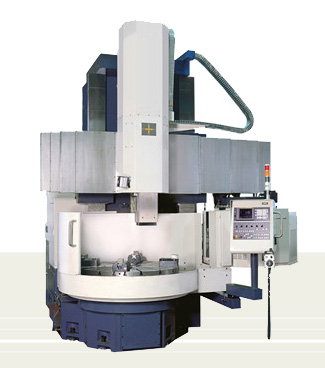

CNC VERTICAL TURNING LATHE
Brand (Model) : You Ji (YV-1200)
Description
Heavy duty turning machine for a wide range of product including tyre mould, labyrinthing, oil and gas machine sparepart and etc.
Table diameter : Ø1250mm
Max. swing diameter : Ø1600mm
Max. turning diameter : Ø1350mm
Max. turning height : 1200mm
Max. work-piece weight : 5000kg
No. of tool position : 12 tools
Tolerance : P: +/-0.007/500, Ps: +/-0.005(X & Z)mm
Machine

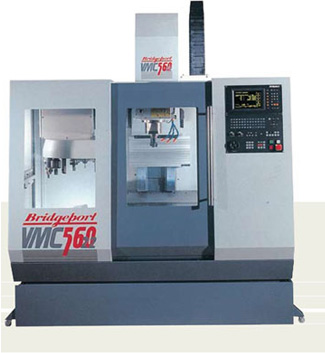

PRECISION CNC MACHINE CENTRE - BRIDGEBOARD
VMC-560
Description
Fully computerized milling machine providing high accuracy and fine finishing of machine parts, tools and ect
X - 560mm, Y - 400mm, Z - 400mm
Tolerance : +/- 0.01mm
Machine

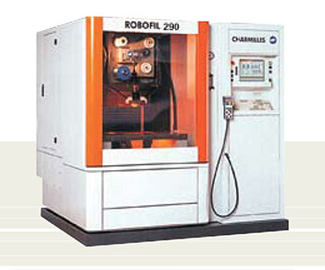

PRECISION CNC WIRE-CUT - CHARMILLES EDM 290
High accuracy wire cutting process for precision tools, mould die parts and etc Specifications
X - 380mm, Y - 250mm, Z - 200mm
Tolerance : +/- 0.005mm
Machine
PRECISION CNC EDM
Description
Provide various profile forming and good texture finishing for plastic mold inserts, metal stamping die components and etc
X - 400mm, Y - 300mm, Z - 200mm
Tolerance : +/- 0.02mm
Machine

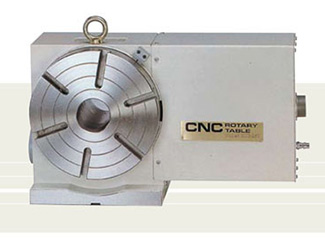

CNC ROTARY TABLE
Can make complex geometries possible, reduce the number of setups for multi- sided parts, shorten cycle times & cut the number of tools changes. Such as CAM, shaft and etc.
Machine

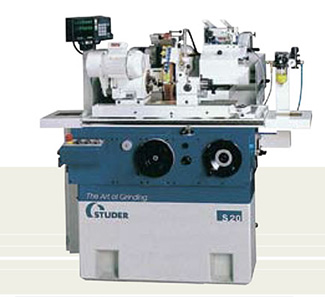

CYCLINDRICAL GRINDING MACHINE
Description
External & internal grinding
Ø150mm x Length 400mm
Tolerance : +/- 0.005mm
Machine

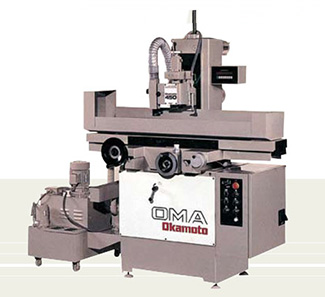

SURFACE GRINDING MACHINE - OKAMOTO
High precision grinding Specifications
X - 450mm, Y - 150mm
Tolerance : +/- 0.001mm
Machine

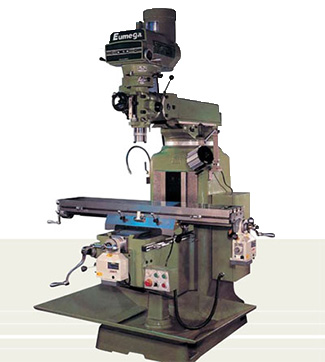

VERTICAL MILLING MACHINE
Description
Vertical milling on machine spare parts, inserts, jigs and fixtures.
X - 780mm, Y - 360mm, Z - 350mm
Tolerance : +/- 0.03mm
Machine

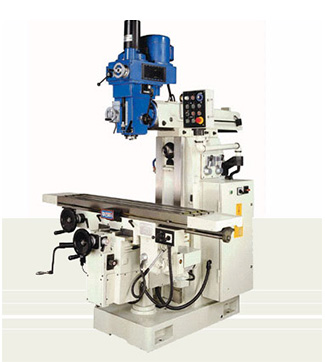

VERTICAL & HORIZONTAL MILLING MACHINE
2 faced milling on tools and parts providing higher precision milling than conventional vertical milling Specifications
X – 1100mm, Y – 350mm, Z – 460mm
Tolerance : +/- 0.02mm
Machine

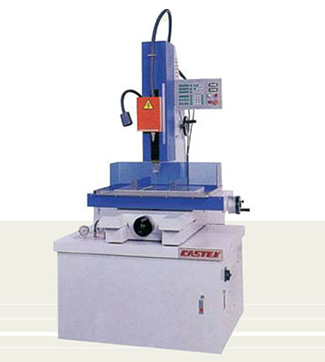

SUPER DRILL EDM - CASTEK
Specifications
X - 200mm, Y - 200mm, Z - 250mm
Hole: ø0.1mm to 1.0mm
Tolerance : +/- 0.01mm
Machine

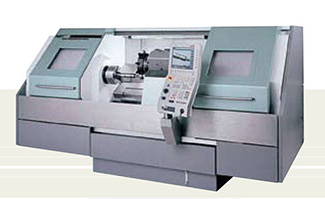

PRECISION CNC-LATHE MACHINE
Automated turning process with high accuracy for a wide range (small to large) of components including shafts, pins, collars, ejectors and etc. Specifications
Ø 230mm & 800mm feed
Tolerance : +/- 0.01mm
Machine

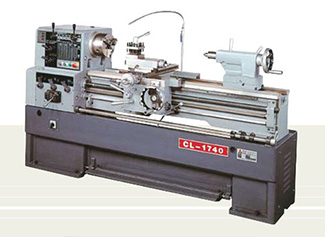

MANUAL LATHE/TURNING MACHINE
Description
Manual turning process for a wide range (small to large) of components including shafts, pins, collars, ejectors and etc
Specifications
Ø 230mm & 800mm feed
Ø 420mm & 1000mm feed
Ø 600mm & 1500mm feed
Ø 1000mm & 3000mm feed
Tolerance : +/- 0.02mm
Machine

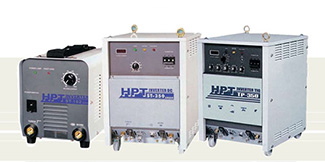

WELDING MACHINE - ARGON, CO2, MAG & CO2
Argon Gas discharge welding to provide quality connection
